The Tourplan NX Resource Assignment module allows resources - Drivers, Guides & Vehicles - to be assigned to services. The assignment details are able to be output on message documentation.

The Resource Assignment codes can be used between the SERVICES tags, they will resolve against a single resource assignment. If the service line is associated with multiple resource assignments it will resolve against the first one found.

Section Tags

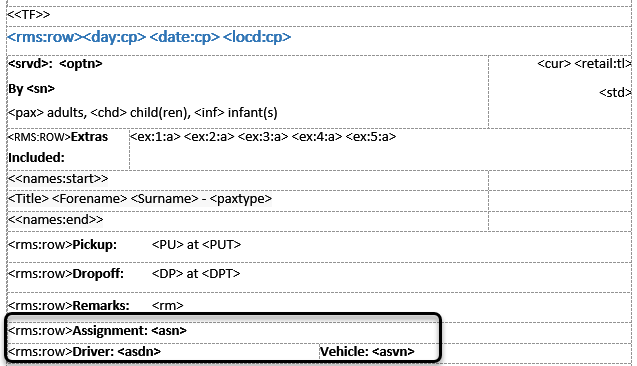

The <<ASSIGNMENTS:START>> and <<ASSIGNMENTS:END>> Section tags can be used inside the SERVICES tags which will result in a resource assignment block for each resource assignment associated with the service

As well as listed here, Assignment Substitution Codes are listed with Service Line Substitution Codes

Section Tags	Substitution Codes	Data Source
<<ASSIGNMENTS:START>>
	<ASID>	Assignment ID
	<ASN>	Assignment Name
	<ASS>	Assignment Status
	<ASTYPE>	Assignment Type
	<ASSTART>	Assignment Start Date
	<ASEND>	Assignment End Date
	<ASD>	Assigned Driver Code
	<ASDN>	Assigned Driver Name
	<ASG>	Assigned Guide Code
	<ASGN>	Assigned Guide Name
	<ASV>	Assigned Vehicle Code
	<ASVN>	Assigned Vehicle Name
<<ASSIGNMENTS:END>>

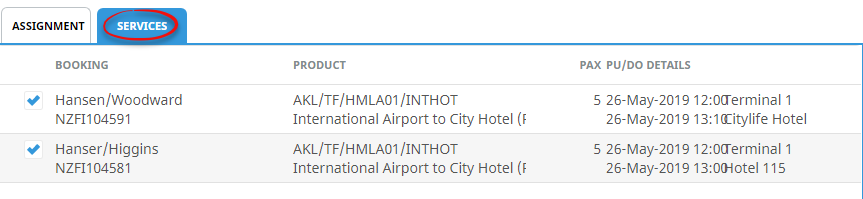

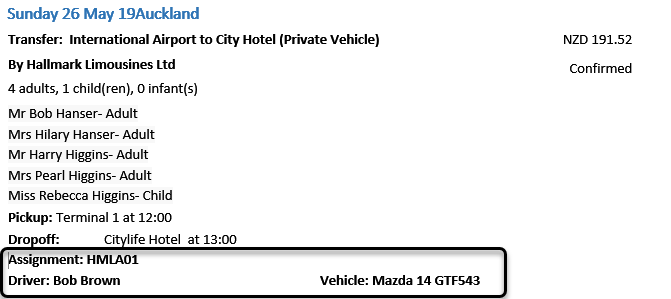

There are passengers from two different bookings being transferred in this assignment - 5 from booking NZ FI 104591 and 5 from NZ FI 104581

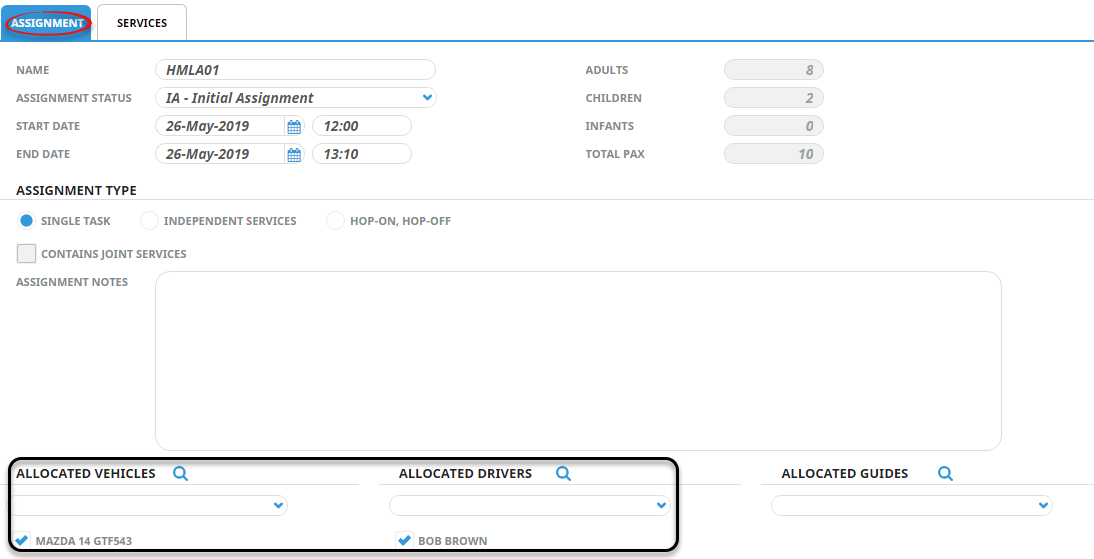

The Resource Assignment substitution codes only output data that is on the 'Assignment' tab. Detail from the 'Services' tab is booking data and can be output in conjunction with the assignment data.
